How Will My Compiler Know the Address or Register Assignments for My Soft Peripherals?

When you add a soft peripheral to your CSoC design, FastChip can automatically allocate and assign addresses for each of the memory-mapped registers in the peripheral and for your entire design. FastChip’s Generate utility communicates this information to your compiler using a text-based header file.

The following demonstrates how this is done.

Whenever you use a soft peripheral containing a memory-mapped register, you can specify the symbolic address or name of the register. This is the name conveyed to your compiler. In this example, a Command Register soft peripheral is assigned the symbolic address MyRegister. This same approach also works for custom modules imported from schematic capture or logic synthesis. This example covers both the A7 and E5 CSoC families.

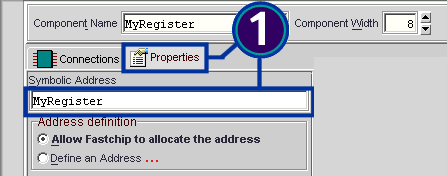

Choose a Command Register module from the FastChip library. Click the Properties tab and type MyRegister in the Symbolic Address text box. Click OK.

Click Generate in the FastChip toolbar.

The Generate dialog box appears slightly differently, depending on whether you use the E5 or A7 CSoC family. The name of the header is automatically named after the project, although you can change the name and directory location.

Check the option box to view the generated header file. Click OK when finished.

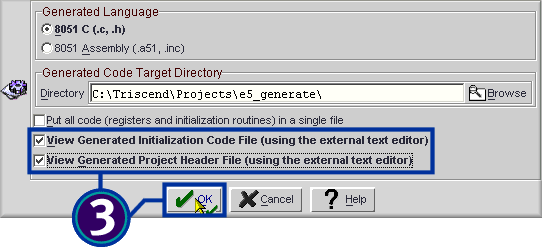

E5 Family Example:

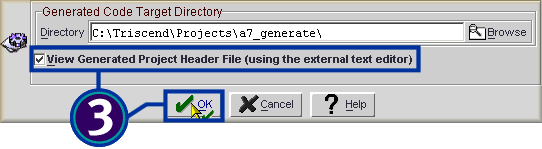

A7 Family Example:

The register declaration appears in the resulting *.h header file. For the E5 family, the header file is directly compatible with the Keil 8051 ‘C’ compiler, and is supported by most other 8051 compilers. For the A7 family, the declarations should work with any ANSI-C compiler.

In both cases, there are compiler directives and macros that define the Triscend register declarations.

E5 Family Example:

The register MyRegister was automatically assigned to address 0xefff by FastChip.

•

•
// ========= BEGIN SOFT MODULE REGISTER DECLARATIONS ======

CHAR_XDATA (MyRegister,0xefff)

// ========== END SOFT MODULE REGISTER DECLARATIONS =======

•

A7 Family Example:

The register MyRegister was automatically assigned to address 0x100ffffc by FastChip.

•

•
/* ======== BEGIN SOFT MODULE REGISTER DEFINITION ======= */

/* = You can use the following register definition = */

/* = with the access macros defined above. You can = */

/* = also type cast the register definition yourself = */

/* = eg. to access a 4 bytes register 'MyReg' = */

/* = as unsigned int -> TWORD(MyReg)=102; = */

/* = as string -> sprintf((char *)MyReg, "abc"); = */

/* ====================================================== */

#define MyRegisterA7 0x100ffffc /* size = 4 bytes */

/* ========= END SOFT MODULE REGISTER DEFINITION ======== */

•

Finally, reference the header file using an include statement in your ‘C’ source code. Once the registers are referenced, you can compile your Triscend design just like any other ‘C’ application.

// Include the header file automatically created by FastChip

#include "mydesign.h"

•

FastChip Version: 2.2.0

This solution may or may not apply to other versions of the FastChip development system.
